24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank

24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank

نام تجاری:	BABOS
شماره مدل:	SD-9
مقدار تولیدی:	20 عدد
قیمت:	قابل مذاکره
شرایط پرداخت:	L/C ، D/A ، D/P ، T/T ، Western Union
توانایی عرضه:	100000 عدد در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

مادی:

کاربید تنگستن

شکل:

شکل

قطر برش:

24 میلی متر

طول برش:

21 میلی متر

قطر ساق پا:

1/4 "

طول کلی:

124nn

نوع فلوت:

برش دوبل استاندارد

مناسب برای:

مشخصات سطح ماشینکاری قطعه کار

کاربرد:

دبر زدایی، شکل دهی و تکمیل

مقدار بسته بندی:

1 قطعه

حداکثر دور در دقیقه:

50000

جزئیات بسته بندی:

جعبه پلاستیکی

توضیحات محصول

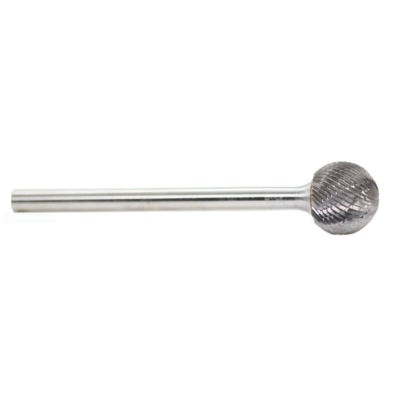

24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank

Type D carbide burr is suitable for machining circular arc profile and removing burrs at welding area, 100mm shank length makes it possible to reach the deeper workpiece areas that are difficult to reach with 45mm standard shank length. Also we provide 150mm, 200mm shank length to meet the different processing needs of customers, please contact us for more detailed information

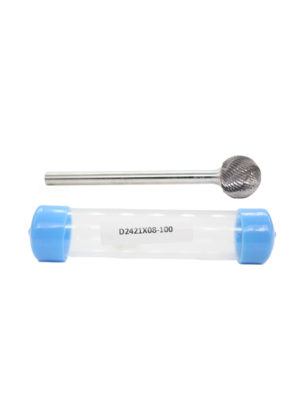

24mm Customized 100mm Shank Length Ball Carbide Burrs Double Cut on 1/4" shank 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:24mm

Length of Flute: 21mm

Shank Diameter: 6mm

OAL: 121mm

Cut Type: Standard Double Cut

Other Available Sizes Related to Type D Ball Shape Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	5/16"	1/4"	2"	SD-2	Brazed
	3/8"	5/16"	2-1/16"	SD-3	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
